A new radio the size of an ant can gather all the power it needs from the same electromagnetic waves that carry signals to its receiving antenna—no batteries required.
Designed to compute, execute, and relay commands, this tiny wireless chip costs pennies to make. It’s cheap enough to become the missing link between the internet as we know it and the linked-together smart gadgets envisioned in the “Internet of Things.”
“The next exponential growth in connectivity will be connecting objects together and giving us remote control through the web,” says Amin Arbabian, an assistant professor of electrical engineering at Stanford University who recently demonstrated this ant-sized radio chip at the VLSI Technology and Circuits Symposium in Hawaii.
Much of the infrastructure needed to enable us to control sensors and devices remotely already exists: We have the internet to carry commands around the globe, and computers and smartphones to issue the commands. What’s missing is a wireless controller cheap enough to so that it can be installed on any gadget anywhere.
“How do you put a bi-directional wireless control system on every lightbulb?” Arbabian asks. “By putting all the essential elements of a radio on a single chip that costs pennies to make.”
Cost is critical because, as Arbabian observes, “We’re ultimately talking about connecting trillions of devices.”
Re-engineering Every Function
Arbabian started the project in 2011 while he was completing a PhD program and working with Professor Ali Niknejad, director of Wireless Research Center at University of California, Berkeley. The project took time because Arbabian wanted to rethink radio technology from scratch.
“In the past when people thought about miniaturizing radios, they thought about it in terms of shrinking the size of the components,” he says.
But Arbabian’s approach to dramatically reducing size and cost was different. Everything hinged on squeezing all the electronics found in, say, the typical Bluetooth device down into a single, ant-sized silicon chip.
This approach to miniaturization would have another benefit—dramatically reducing power consumption, because a single chip draws so much less power than conventional radios. In fact, if Arbabian’s radio chip needed a battery—which it doesn’t—a single AAA contains enough power to run it for more than a century.
But to build this tiny device every function in the radio had to be reengineered.
The antenna had to be small, one-tenth the size of a Wi-Fi antenna, and operate at the incredibly fast rate of 24 billion cycles per second. Standard transistors could not easily process signals that oscillate that fast. So his team had to improve basic circuit and electronic design.
He had to make many other tweaks, but in the end Arbabian managed to put all the necessary components on one chip: a receiving antenna that also scavenges energy from incoming electromagnetic waves; a transmitting antenna to broadcast replies and relay signals over short distances; and a central processor to interpret and execute instructions. No external components or power are needed.
Cheap to Make
And this ant-sized radio can be made for pennies.
Based on his designs, the French semiconductor manufacturer STMicroelectronics fabricated 100 of these radios-on-a-chip. Arbabian has used these prototypes to prove that the devices work—they can receive signals, harvest energy from incoming radio signals, and carry out commands and relay instructions.
Now Arbabian envisions networks of these radio chips deployed every meter or so throughout a house (they would have to be set close to one another because high-frequency signals don’t travel far).
He thinks this technology can provide the web of connectivity and control between the global internet and smart household devices.

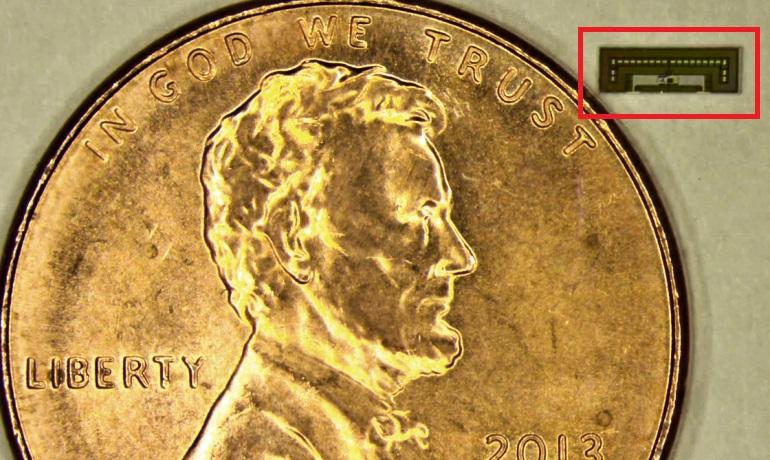

“Cheap, tiny, self-powered radio controllers are an essential requirement for the Internet of Things,” says Arbabian.
Republished from Futurity.org under Creative Commons license 3.0. Read the original.
